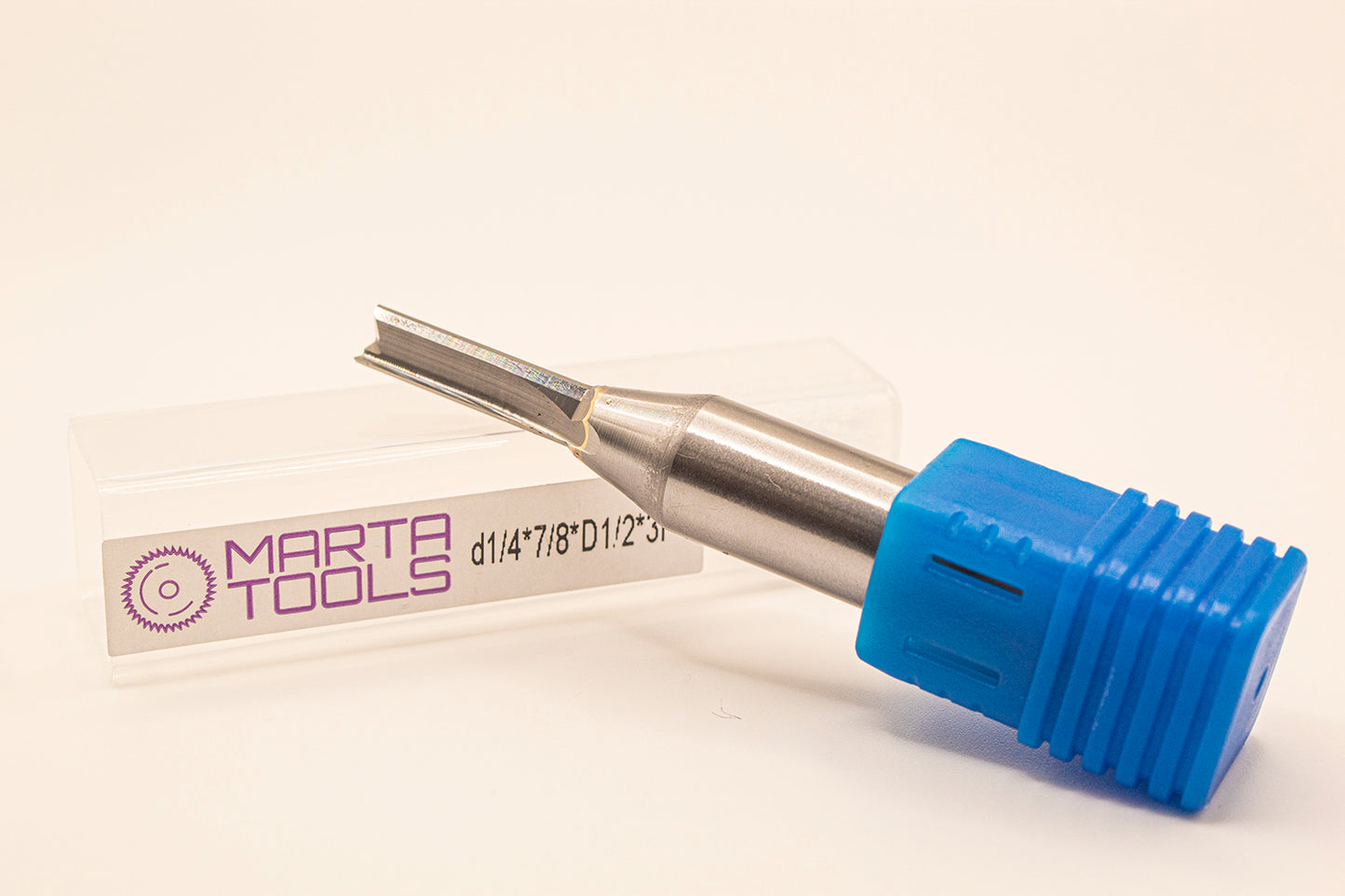

UC-3101 3 Flute Solid Carbide Cutting Edge Straight Plunge High Production 1/4 Dia x 7/8 x 1/2 Inch Shank

Designed for precision and efficiency, the 3 Flute Solid Carbide Cutting Edge Straight Plunge High Production Router Bit is perfect for cutting 7/8" material thickness in a single pass. This bit features three flutes for improved surface finish, balancing the bit and eliminating vibration to ensure a smooth and high-quality cut. Each revolution produces three cuts, yielding a fine finish and allowing for increased feed rates. The UC-3101 is equipped with solid carbide cutting edges for durability and long-lasting performance.

Specifications:

• Cutting Diameter: 1/4 inch
• Cutting Length: 7/8 inch
• Shank Diameter: 1/2 inch
• Flutes: 3
• Material: Solid carbide cutting edges brazed into a steel shank

Key Features:

• Excellent for nesting and grooving at extremely fast feed rates, increasing cost savings
• Unique design contributes to superb performance and excellent cutting results
• Primarily designed for high-speed CNC production
• Fine micrograin extra hard carbide ensures long tool life before re-sharpening

Applications:

• Ideal for cutting 7/8" material thickness in one pass

Excellent for Cutting:

• Laminated Particle Board, MDF & Melamine

• Plywood

Optimize your CNC machining with the UC-3101, designed for fast, efficient, and precise cuts with minimal material waste. This bit is an excellent choice for high-speed production and fine finishes, making it a valuable addition to any CNC toolset.
